Jargon Tunnel Broker

Overview and Installation Instructions

Purpose
Configuration
Installation Of The Tunnel Broker
Installation Of The Cgi Or Isapi Script
Editing The Tunnel Broker Configuration File
Using The Command Line Interface
Starting The Tunnel Broker
Stopping The Tunnel Broker
Checking The Status Of The Tunnel Broker
Running A Test Procedure
Using The Graphical Interface
Running as a Service on Windows NT/2000/2003

PURPOSE

The Jargon Tunnel Broker is a server-side process that allows remote HTTP clients to run Progress 4GL procedures via the Progress AppServer.

Using the Jargon Tunnel Broker has the following advantages:

     1. No Java is required on the client.
     2. No complicated deployment packages.
     3. No firewall issues.
     4. Encryption is available.
     5. A client cannot lock an agent indefinitely.
     6. A small pool of agents can service a large number of simultaneous users.

CONFIGURATION

The Jargon HTTP Tunnel consists of the following components:

CGI and ISAPI scripts
Tunnel broker
Administration and test utilities.

The CGI and ISAPI scripts require a compatible web server and must be installed on the same system that runs the web server. The CGI script is used on Unix/Linux systems running Apache or Netscape web servers, and the ISAPI "jsihttp.dll" is used on Windows NT/2000/2003.

The Tunnel Broker may run on the server running the CGI/ISAPI script or it may be on another server that is accessible to the server hosting the CGI/ISAPI script. The Tunnel broker requires a Java Virtual Machine (JVM) Version 1.1 or higher (JVM 1.2 or higher for GUI control panel).

Progress AppServer may run on the server running the Tunnel Broker or it may be on another server that is accessible to the server hosting the Tunnel Broker.

INSTALLATION OF THE TUNNEL BROKER

The tunnel.zip and tunnel.tar archives contain all the tunnel broker programs, scripts and configuration files. The archive file should be extracted under a directory of your choice on the server that will be running the tunnel broker. The extracted files are about 2MB.

The following subdirectories will be created:

./tunnel
./tunnel/doc
./tunnel/lib
./tunnel/logs
./tunnel/system
./tunnel/unix/* (multiple subdirectories)
./tunnel/win32/* (multiple subdirectories)

Windows NT/2000/2003

Use a utility like WinZip or PKZip to extract (unzip) the files contained in tunnel.zip into a directory of your choice on the server that will run the tunnel broker. The simplest choice is to unzip under "C:\", resulting in "C:\tunnel" as the tunnel broker main directory.
If a Java 1.1 (or higher) JVM is not present, one should be installed. One may be downloaded at http://www.javasoft.com.
See the Windows NT/2000/2003 Install Checklist document for detailed installation and testing instructions.

Unix

Use the "tar" command to extract (untar) the files contained in tunnel.tar into a directory of your choice on the server that will run the tunnel broker.
If a Java 1.1 (or higher) JVM is not present, one should be installed. One may be downloaded at http://www.javasoft.com or from your Unix vendor.
See the Unix Install Checklist document for detailed installation and testing instructions.

INSTALLATION OF THE CGI OR ISAPI SCRIPT

Windows NT/2000/2003 - IIS or PWS

On the system that is running the Web Server:

a) Copy tunnel\win32\scripts\jsihttp.dll to C:\InetPub\scripts
b) Copy tunnel\win32\system32\jsihttp.ini to

C:\WINNT\SYSTEM32 (on WindowsNT/2000)
C:\WINDOWS\SYSTEM32\INETSRV (on Windows 2003)

c) Edit the jsihttp.ini file to configure one or more tunnel brokers. For details see the document: Configuring the Jsihttp Script for Windows NT/2000/2003. Here is an example of a jsihttp.ini file that configures three tunnel brokers, two on the same host where the script is being run (but with different broker port numbers), and the third on a Unix host:
[General]
ErrorLogFile=C:\tunnel\logs\jsihttp_error.log
[DevBroker]
HostName=localhost
Port=8001
Timeout=10
TraceLogFile=C:\tunnel\logs\dev_trace.log
TraceMode=off
[TestBroker]
HostName=localhost
Port=8003
Timeout=10
TraceLogFile=C:\tunnel\logs\test_trace.log
TraceMode=on
[RelBroker]
HostName=sun5
Port=8001
Timeout=30
TraceLogFile=C:\tunnel\logs\rel_trace.log
TraceMode=off

d) For Windows 2003 server, which installs with many options shut off by default (for security purposes), you may also have to do these steps, using the IIS Manager. Select the default web site (or other site if you have defined virtual hosts) and edit its properties.

To enable the Tunnel Broker DLL to be run as an ASAPI executable:

Select the "Web Service Extensions" node under the web server node.
Click the "Properties" button (or in right-click popup menu).
Add an entry for "Tunnel Broker DLL"
Set it to "Allowed"
Add a "Required files" entry with the full pathname to the jsihttp.dll file.

To enable Version 3 Jargon apps, select the web server node

Click "Properties"
Select "Mime Types"
Add a new MIME type to serve files with the extension ".ini" (for V3 apps).
Extension: ".ini"
MIME Type: "text/plain"

UNIX - CGI compatible web server

a) Compile jsihttp.c (in tunnel/unix/cgi-bin/src) using the command:
cc jsihttp.c -o jsihttp
or, for systems using the GNU compiler:
gcc jsihttp.c -o jsihttp
b) Copy the jsihttp object file and the tunnel/unix/cgi-bin/jsihttp.sh shell script file to the web server’s cgi-bin directory. Note that a precompiled jsihttp object file for Red Hat Linux is included (in tunnel/unix/cgi-bin/linux/RedHat/2.2.5-15).
c) Edit jsihttp.sh to reflect the host name and broker port of the server that will run the Tunnel Broker.
d) You can run multiple Tunnel Brokers on unix. For each one, copy the jsihttp.sh to a new name (like jsihttp2.sh) and change the host name and broker port values for the AppServer broker with which each Tunnel Broker will be used.

EDITING THE TUNNEL BROKER CONFIGURATION FILE

Edit the tunnel/system/tunnel.ini file to reflect the parameters of your installation:

AdminPort:
Choose an open port to be used for broker administration.
BrokerName:
Choose a unique name for this particular broker configuration.
BrokerPort:
Choose an open port to be used for communication between the http script and the broker.
InitialAgentCount:
The initial number of AppServer agents that should be controlled by the Tunnel Broker.
MaxAgents:
The maximum number of AppServer agents that should be controlled by the Tunnel Broker.
AppServerURL:
The host, port, and AppServer broker name.
ErrorFile:
Path and file name for error log output.
TraceMode:
(on/off) Enable/disable tracing of request/result sets handled by the broker.
TraceFile:
Path and file name for trace log output.
ASTraceMode:
(on/off) Enable/disable tracing of AppServer operations.
ASTraceFile:
Path and file name for AppServer trace output.
Note: Trace modes are useful for debugging purposes, otherwise should be off.

Example:

     AdminPort=8000
     BrokerName=TunnelBroker1
     BrokerPort=8001
     InitialAgentCount=2
     MaxAgents=5
     AppServerURL=http://localhost:5162/asbroker1
     ErrorFile=../logs/tunnel.err
     TraceMode=off
     TraceFile=../logs/tunnel.log
     ASTraceFile=../logs/astrace.log
     ASTraceMode=off

USING THE COMMAND LINE INTERFACE

All of the following script files have a ".bat" extension for Windows and a ".sh" extension for UNIX. They are located in the tunnel/unix and tunnel\win32 directories. For ease of use, you may wish to add their directory location to your search path environment variable.

Customizing the scripts for your environment:

These scripts assume that the "java" executable can be found in the search path of your environment settings. If not, then the full path of the java executable must be specified in the command line in each script.
If the version of java being used is 1.2 or higher, modify all the "-classpath" entries in the "bat" or "sh" scripts to add the "o4glrt2.zip" AHEAD of the o4glrt.zip entry, and copy the o4glrt.zip file from the tunnel/lib/v91a or tunnel/lib/v91b to tunnel/lib. Note that classpath entries are separated by a semicolon.
On Windows NT, you can use the "start [batchfilename]" command syntax to free up (restore the prompt) to the DOS window you are using. The "start" command can also be put in the beginning of the command within each ".bat" file.

For example, if all the above changes were to be done:

java -classpath .;.\lib\jtunnel.jar;.\lib\o4glrt.zip b.Server ./system/tunnel.ini

would be changed (for Windows) to something like:

start C:\JRE130\bin\java -classpath .;.\lib\jtunnel.jar;.\lib\o4glrt2.zip;.\lib\o4glrt.zip
b.Server ./system/tunnel.ini

NOTE: these commands may be split onto multiple lines in this document for readability; but in the scripts they must be on one line.

STARTING THE TUNNEL BROKER

Invoke the "server" script to start the Tunnel Broker. The server script specifies the class "b.Server" which has one required parameter:

java -classpath .;.\lib\jtunnel.jar;.\lib\o4glrt.zip b.Server ./system/tunnel.ini

If using an ini file other than the default file provided by this distribution, change the parameter "./system/tunnel.ini" to reflect the ini file being used.

STOPPING THE TUNNEL BROKER

Invoke the "stop" script to stop the Tunnel Broker. The stop script specifies the class "b.AdminClient" which has three required parameters:

java -classpath .;.\lib\jtunnel.jar b.AdminClient localhost 8000 stop

The first and second parameters correspond to the host name and broker admin port number. The third parameter is the action that should be taken by the AdminClient. In this case, "stop" will shut down the Tunnel Broker.

CHECKING THE STATUS OF THE TUNNEL BROKER

Invoke the "status" script to check the status of the Tunnel Broker. The status script specifies the class "b.AdminClient" which has three required parameters:

java -classpath .;.\lib\jtunnel.jar b.AdminClient localhost 8000 status

RUNNING A TEST PROCEDURE

Extract the "statusas.p" and "statusas.i" files from the zip file tunnel/test/AppServerStatus.zip, and place them in the AppServer working directory. Then you can invoke the "test" script to test the Tunnel Broker. The test script specifies the class "b.TestClient" which has four required parameters:

java -classpath .;.\lib\jtunnel.jar b.TestClient localhost 8001 statusas.p ProcName=ShowStatus

The first and second parameters correspond to the host name and broker port number. The third parameter is the program that will be executed. The fourth parameter is the URL-encoded query string of name-value pairs that will be sent to the host. The first name-value pair should always be the name of the procedure to be invoked. The remaining name-value pairs should be the parameters that the specified procedure requires.

This example runs a test procedure that displays various AppServer environment values, such as the Propath setting. It does not require any database connection.

USING THE GRAPHICAL INTERFACE

The GUI control panel offers the same functionality as the command line interface scripts. It can also be used to edit and save changes to the tunnel.ini file that was specified in the startup command. (Note: The GUI interface requires a JVM 1.2 or 1.3)

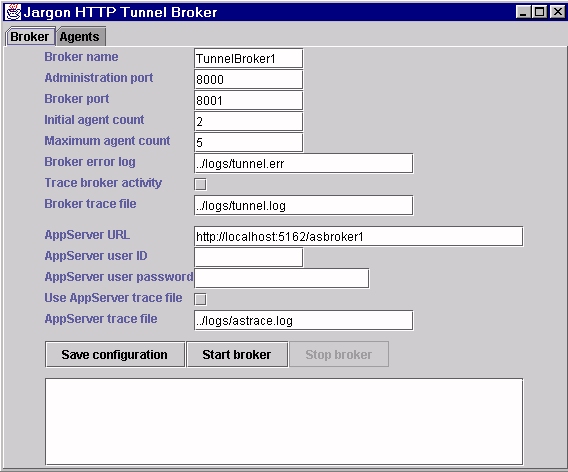

Click here to see an image of the main window in the GUI control panel.

From a dos shell (Win32) or an XTerm window (UNIX) run the "gui" script:

java.exe -classpath .;.\lib\jtunnel.jar;.\lib\jtunnelgui.jar;.\lib\o4glrt.zip a.BrokerMain ./system/tunnel.ini

If using an ini file other than the default file provided by this distribution, change the parameter ./system/tunnel.ini" to reflect the "ini" file being used.

IMPORTANT NOTE: Do NOT close the GUI control panel. If it is closed, the Tunnel Broker will also stop. However, you can minimize the window for the GUI control panel so it is only on the Start bar.

RUNNING AS A SERVICE ON WINDOWS NT/2000/2003

The Jargon Tunnel Broker can be set up to run as a "service" on Windows NT/2000/2003. For details, see the "Running as a Service on Windows NT/2000/2003" document. Note that if this is done, you CANNOT use the gui.bat, server.bat or stop.bat scripts. However, you can still use the status.bat and test.bat scripts.
