Janam XM66 - How to Defeat Summit Radio Utility

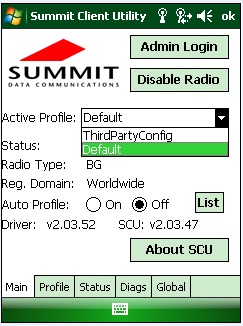

You can enter WZC (i.e. MS IP stack) from the Summit Client Utility without any add on files. Just logon to Summit with password: SUMMIT and select "ThirdPartyConfig" from the drop down below. After you select it you must use the rubber power button and turn off and on the device.
This would be a good quick testing environment and if you want to make it persistent then we can add the registry file attached and possibly need to update the ROM.
Place the WZV_radio_enable.reg in \application folder and perform a hard reset.

To perform a hard reset, do the following:
1. Remove the battery door from the back of the unit.
2. Locate the reset button.
3. While holding the arrow-up key located on the keypad, use the stylus to press the reset button (once). Continue to hold the arrow-up key.
4. After the reset has occurred and the calibration screen appears on the screen, release the arrow-up key.


The XM66 user manual is available here
