JCS Vendor Staging for Motorola MC5040 devices

Introduction

Client side hardware and staging will be covered here so that a hardware vendor can prep devices prior to shipment. This process also forces hardware QA.

Client Side

Preparing the Mobile Device

Perform hardware "triage" as described in the kbase titled Checkout procedures ("triage") for mobile hardware

Install SD card into SD card slot.

Perform a cold reset as follows:

Hold down the Power and right scan buttons, then press and release the reset button located below the battery release
on the back of the mobile computer. Release the Power and right scan buttons.
Do not hold down any key other than the Power and right scan buttons during a reset. Performing a hard reset
stores formats, preferences and other settings to the default settings.

You'll know if the cold reset worked if you see the screen:

  followed by an alignment screen:

For future reference, here is a link for the full MC5040 User's Guide

Set the Date and Time. Use PACIFIC TIME ZONE.

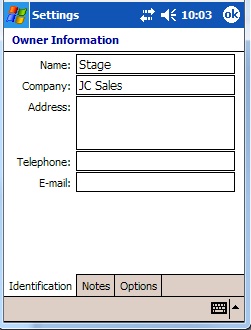

Set owner ID:

Verify Radio Power checkbox checked:

  Tap System Tab:

Make sure box is checked:

Confirm battery charge:

Confirm 100% charge:

Install/configure DataWedge 2.3:

download DataWedge.exe from:  http://www.jargonsoft.com/v3/rel/jcs/datawedge.zip

• Copy DateWedge.exe to  \windows\startup on mobile device
• Run DataWedge (for the first time) on mobile device (via File Explorer)

  Tap to run:

DataWedge ICON on the "palm top". Tap it to set bar code scanner options:

  Tap Enable:

  Make sure Send Enter key is checked:

Select sound for good scan:

Set particular bar code params via the taskbar DataWedge icon (like above):

Optional: Uncheck all decoders except CODE39, UPCA, and UPCE0 since these bar code types are not used:

Set specific parameters for UPCEO. Tap on UPCE0 to hightlight, then tap PARAM button:

Change ALL the parameters to what is shown below.  Tap on a param to set. Then tap OK button.

Installing the Mobile App

NOTE: Each install MUST be done separately. Do not combine the steps.

Download and install: http://www.jargonsoft.com/v3/rel/reader/readerppo_setup_3.3.42O.zip

Then,

Install Jargon Reader via Active Sync (winXP) or Mobile Device Center (win7):

Download and install: http://www.jargonsoft.com/v3/rel/jcs/jcs_setup.zip

NOTE: You'll see a message on the MC5040 talking about how the display might not look correct when running the app you just installed.

IGNORE THIS MESSAGE.

Then,

Install JC Quick Order via Active Sync (winXP) or Mobile Device Center (win7):

NOTE: You'll see a message on the MC5040 talking about how the display might not look correct when running the app you just installed.

IGNORE THIS MESSAGE.

Manually Copy Files

Download odbc.txt from: http://www.jargonsoft.com/v3/rel/jcs/odbc.zip

• Copy odbc.txt to  \orace on mobile device.
• Create \ramdisk folder on mobile device.
• Copy \orace\jcs_ff.odb to \ramdisk on mobile device.
• Copy  \orace\jcs2_ff.odb to \ramdisk on mobile device.
• MOVE (i.e. CUT and paste) \jargonsoft to \storage card on mobile device.

• rename J/R shortcut to "JC Sales Quick Order" using a desktop Windows Explorer

Final Configuration

Launch JC Sales Quick Order appl from the Program folder. You'll see:

 Tap the OK button.

Choose the Outside network:

 Via the Optoons Menu tap Other Updates.

Password is "ou":

Tap Update Config:

Manually change this address to 74.10.121.98

If you do not see the 65.255.203.136 address below, go back to the Login Screen and set the network to Outside:

Tap Continue. You should see:

Now, Tap Update Apps button:

Confirm the 74.10.121.198 address is as shown below:

Tap Coninue button. You should see:

Tap OK button.

You'll see:

Tap OK biutton.

You'll then see:

Tap OK. Exit ForceField completely from the menu below. Either back your way all the out, or use File --> Exit.

MyMobiler

Download My Mobiler here.
