How to Configure ODBC for PDA Emulator

Be sure to use the 32 bit ODBC Data Source Administrator because the Oracle Lite ODBC driver is needed for the PDA Emulator (which is a 32 bit application).

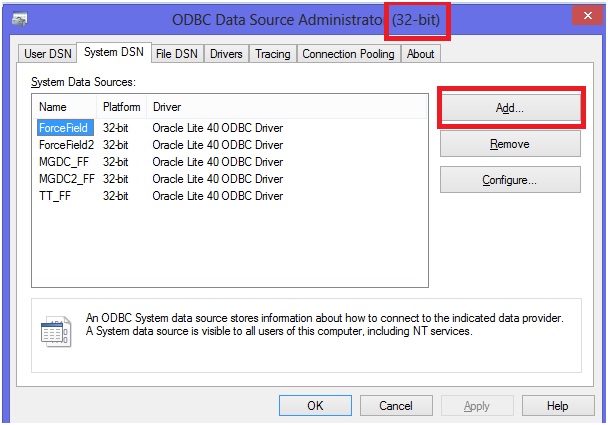

Click Add button to add a new ODBC DSN. You'll need one for EACH JCS_FF and JCS2_FF DSN that you'll create:

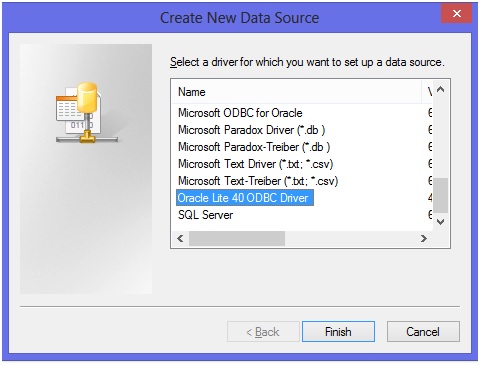

  Select Oracle Lite ODBC driver:

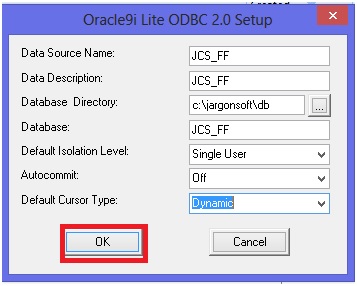

 Fill in the fields like this:

 NOTE: Each PDA Emulator needs it's own JCS_FF and JCS2_FF ODBC DSNs in order to be run simulatenously. These names must be unique.
